Category: Profile Steel
Product model: SC1
Customized service
Product Features:
1. Durable
2. Comprehensive protection
3. The toughness of the coating is strong
4. Save time and effort
5. Low cost
Product Description:

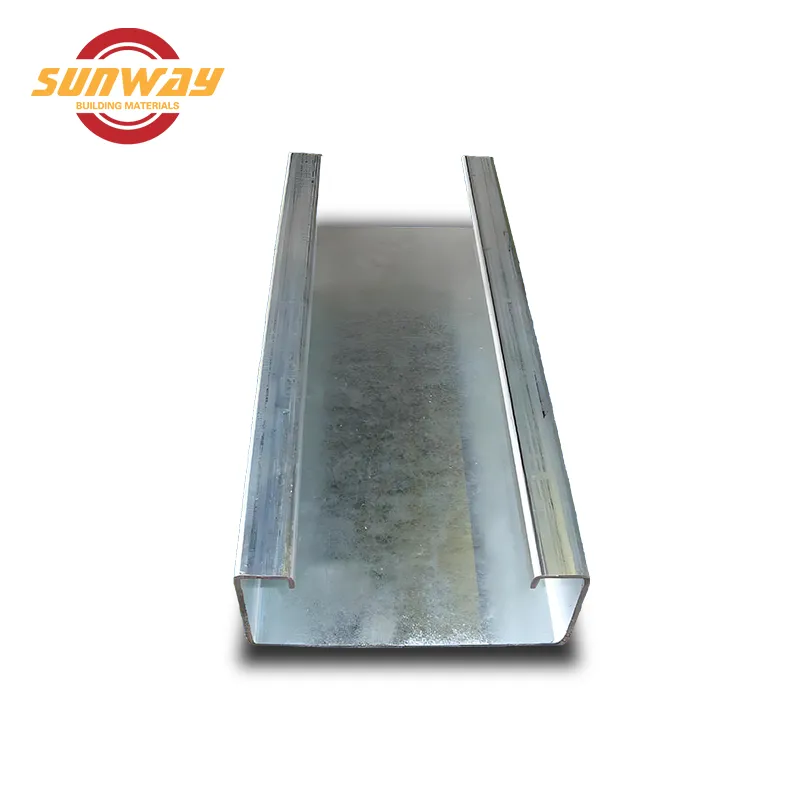

Galvanized C-shaped steel refers to the use of high-strength steel plate, through cold bending, roll forming, with uniform wall thickness, excellent cross-section performance, high strength, compared with the traditional hot rolling the same strength can save 30% of the material a new type of steel.
Product Specifications and Parameters
| product Name | C channel |
| Material | Q235/Q235B/Q345/Q345B/Q195/St37/St42/St37-2/St35.4/St52.4/St35 |
| Surface | Black |
| Shape | C-steel |
| Technology | Cold Rolled.hot Rolled |
| Certificate | ISO 9001:2008/BV |
| Steel Grade | SGCC/SGCD/SGCE/DX51D/DX52D/S250GD/S280GD/S350GD/G550/SPCC |
| Specification | Kg/m | Specification | Kg/m |
| 80×40×20×2.5 | 3.925 | 180×60×20×3 | 8.007 |
| 80×40×20×3 | 4.71 | 180×70×20×2.5 | 7.065 |
| 100×50×20×2.5 | 4.71 | 180×70×20×3 | 8.478 |
| 100×50×20×3 | 5.652 | 200×50×20×2.5 | 6.673 |
| 120×50×20×2.5 | 5.103 | 200×50×20×3 | 8.007 |
| 120×50×20×3 | 6.123 | 200×60×20×2.5 | 7.065 |
| 120×60×20×2.5 | 5.495 | 200×60×20×3 | 8.478 |
| 120×60×20×3 | 6.594 | 200×70×20×2.5 | 7.458 |
| 120×70×20×2.5 | 5.888 | 200×70×20×3 | 8.949 |
| 120×70×20×3 | 7.065 | 220×60×20×2.5 | 7.4567 |
| 140×50×20×2.5 | 5.495 | 220×60×20×3 | 8.949 |
| 140×50×20×3 | 6.594 | 220×70×20×2.5 | 7.85 |
| 160×50×20×2.5 | 5.888 | 220×70×20×3 | 9.42 |
| 160×50×20×3 | 7.065 | 250×75×20×2.5 | 8.634 |
| 160×60×20×2.5 | 6.28 | 250×75×20×3 | 10.362 |
| 160×60×20×3 | 7.536 | 280×80×20×2.5 | 9.42 |
| 160×70×20×2.5 | 6.673 | 280×80×20×3 | 11.304 |
| 160×70×20×3 | 8.007 | 300×80×20×2.5 | 9.813 |

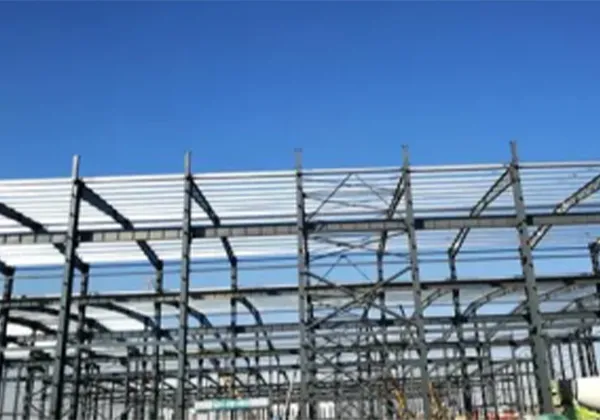

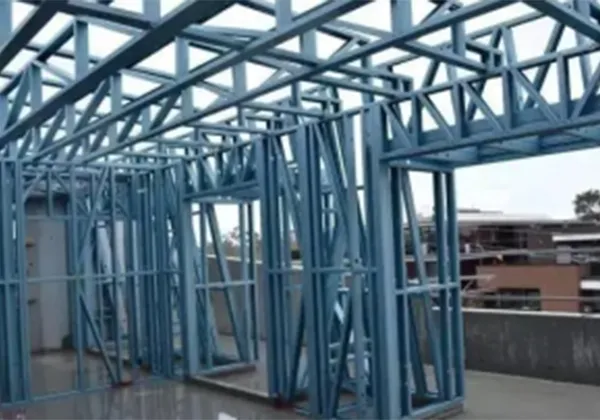

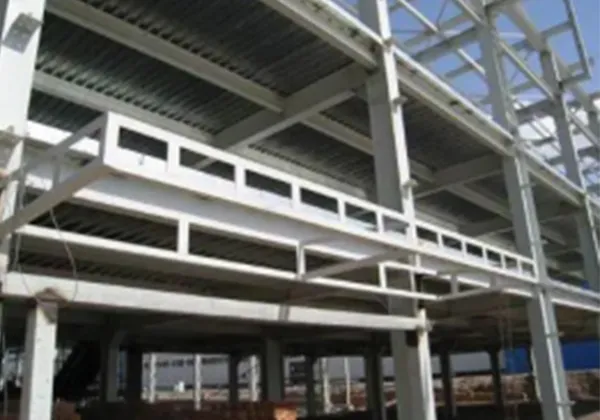

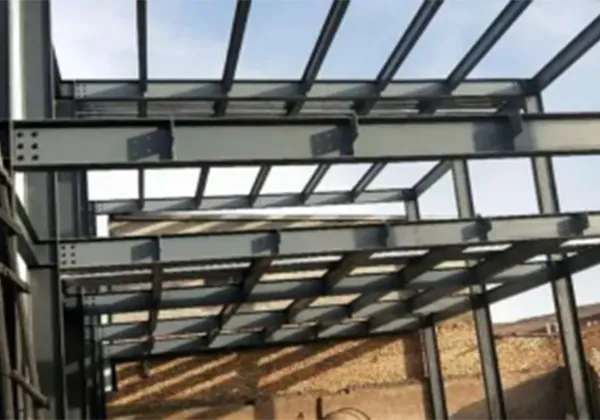

Application Scenarios
1. Building structure
2. Sandwich partition
3. Sandwich bracing
4. Light steel building
5. Pipe support

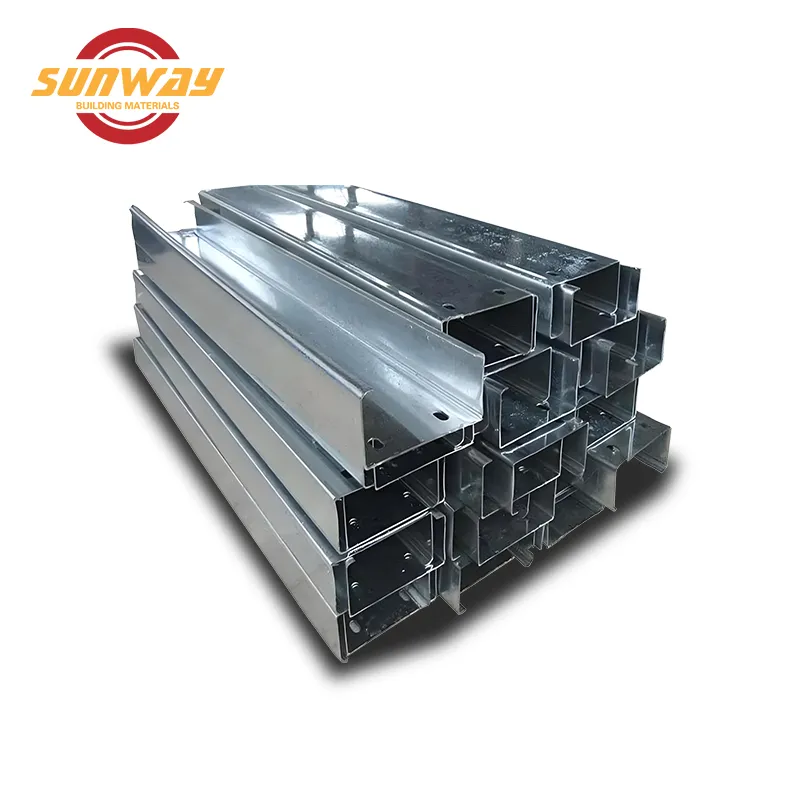

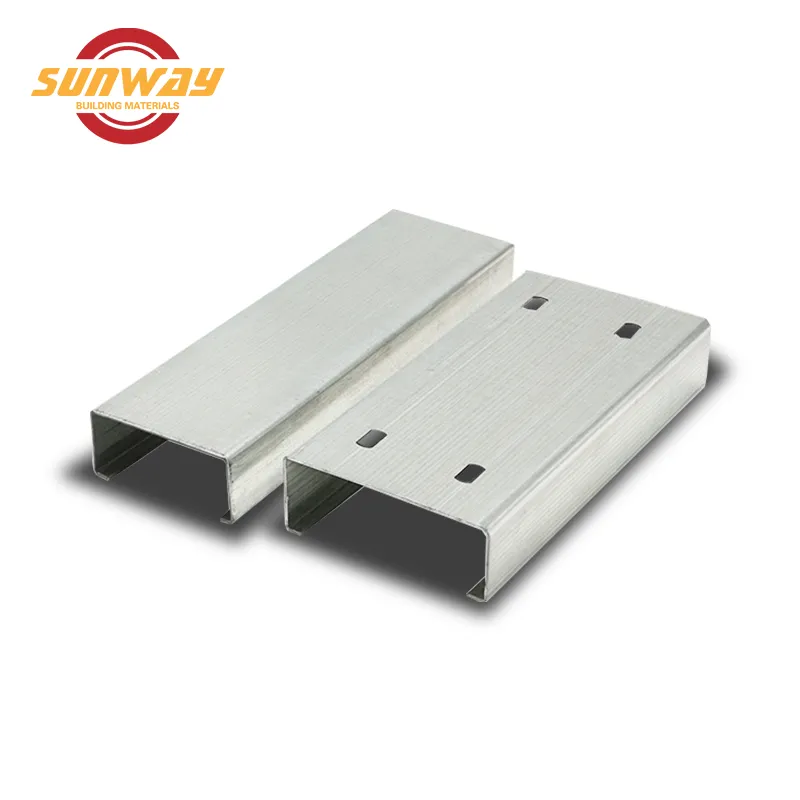

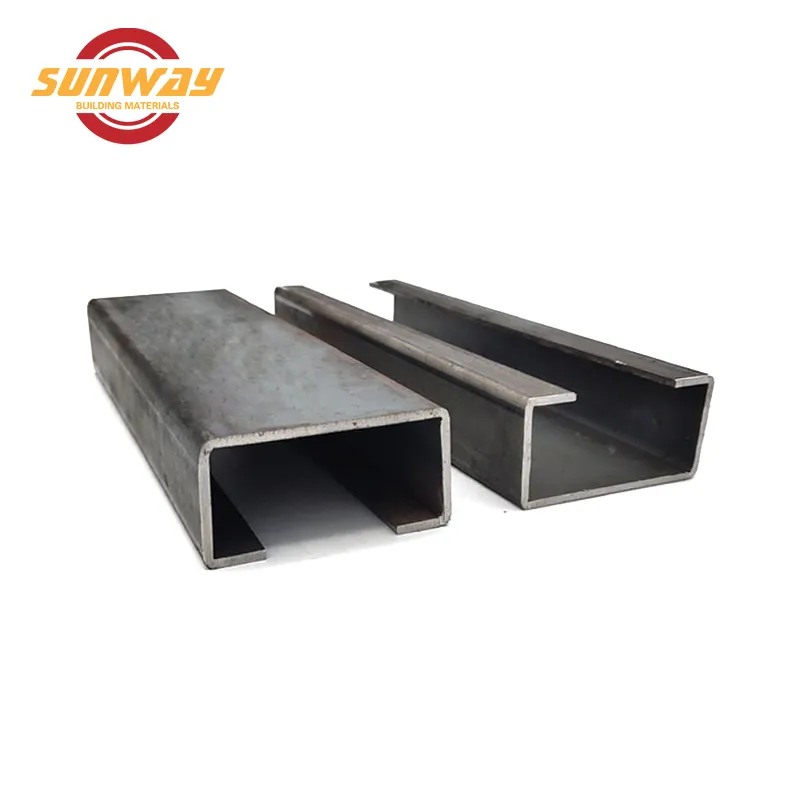

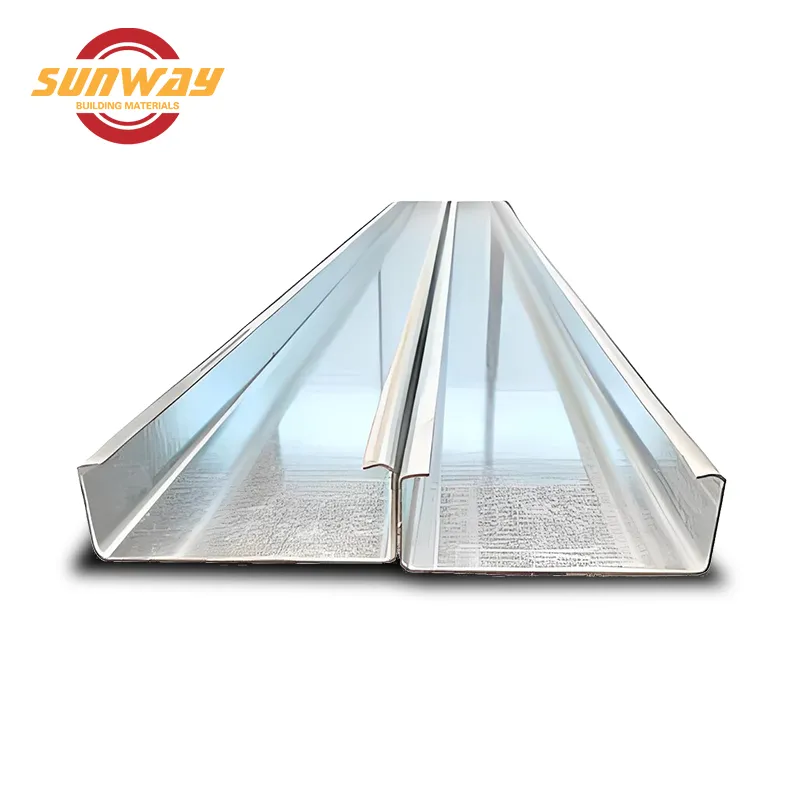

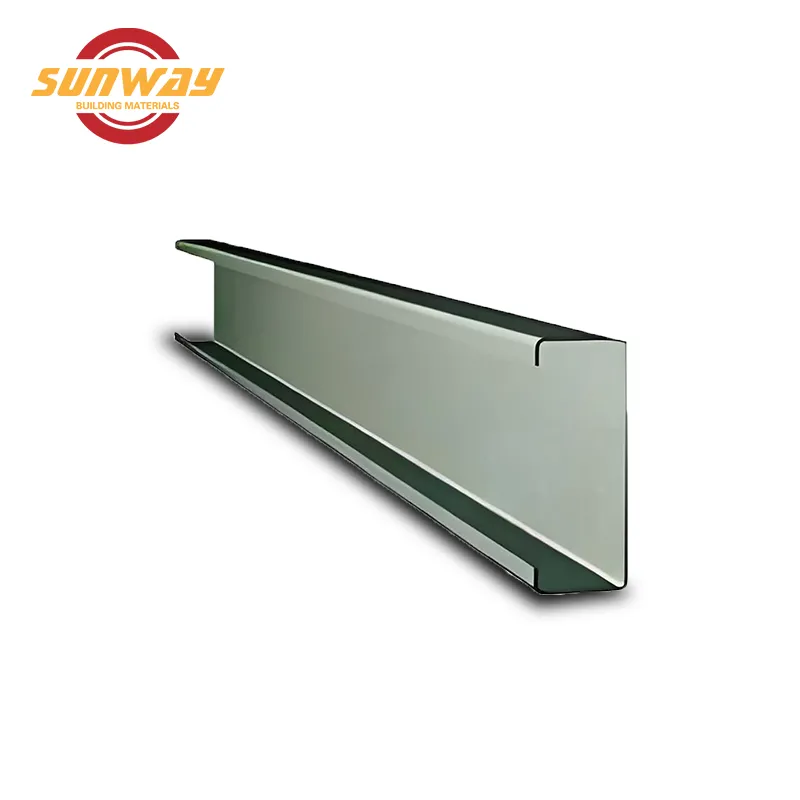

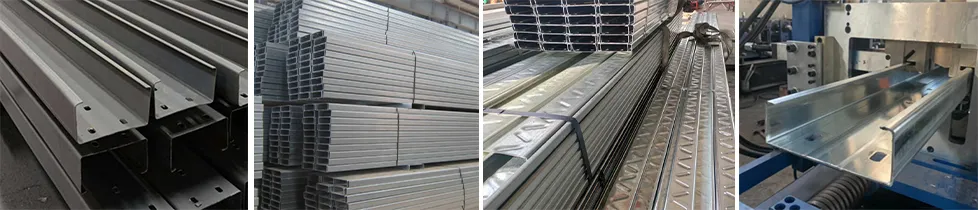

Product Details Display

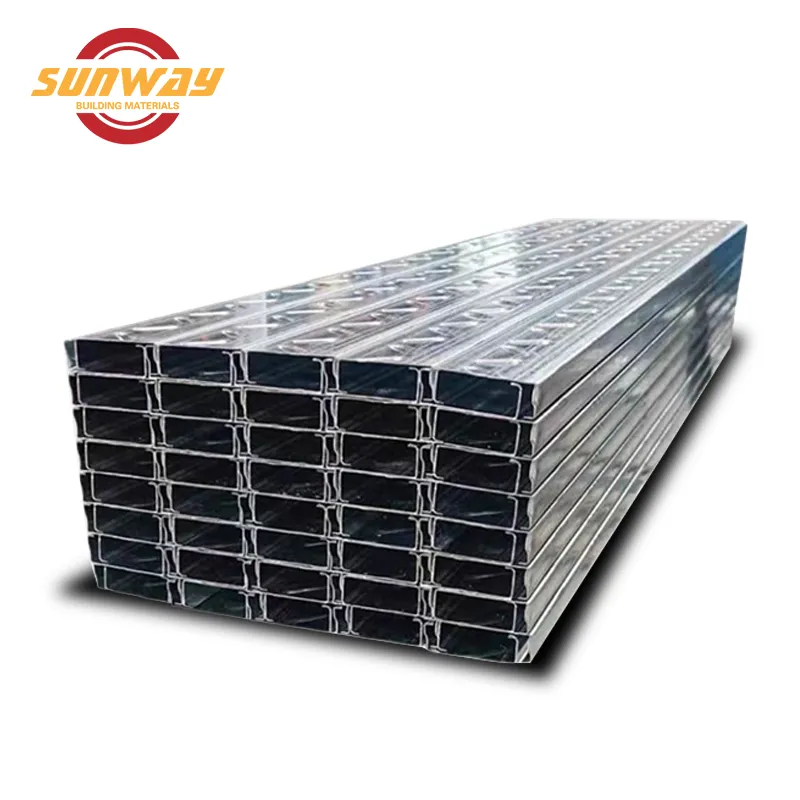

Packing and Shipping
| Package | Standard export seaworthy package,suit for all kinds of transport, or as required. |
| Water-proof Paper + Edge protection + Wooden Pallets | |
| Loading Port | Tianjin, Qingdao Port or any China Seaport |
| Container | 1*20ft container load Max. 25 Ton, Max. length 5.8m |
| 1*40ft container load Max. 25 Ton, Max. Length 11.8m | |
| Delivery Time | 7-15 days or according to the order's quantity |
After-sales Service
We offer a 3-month warranty. If the quality is found to be damaged or missing, we will compensate or replace the product
FAQ:
How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
What is the advantage about your company?
A: Our company has professional team and professional production line.
The logo and the color can be customized?
A: Yes, we welcome you to sample custom
Any other good service your company can provide?
A: Yes, we can provide good after-sale and fast delivery.
Our Services
We always want to make sure that our customers are getting the best deal, so let us know what you're interested in and we'll get back with a quote!
Inventory and warehouse: Our company has sufficient supply and complete specifications；
Transport services: We handle export clearance, documentation, and delivery to the port, ensuring a hassle-free experience for our clients.
Customized services: Customized product design and branding options.
Technical Assistance: Expert guidance on product selection and installation.
After-Sales Support: Timely resolution of issues and shipment tracking.
