Category: Electric Wire
Product model: SW-RVV
Product Features:
Flexibility: Multi-strand fine copper conductors enable excellent bending performance
Dual Protection: Inner PVC insulation + outer PVC sheath for abrasion/oil resistance
Safety Compliance: Flame-retardant options available (ZR-RVV), meets GB/T 5023 standards
Easy Installation: Sheathed design simplifies conduit routing and reduces insulation damage
Product Description:

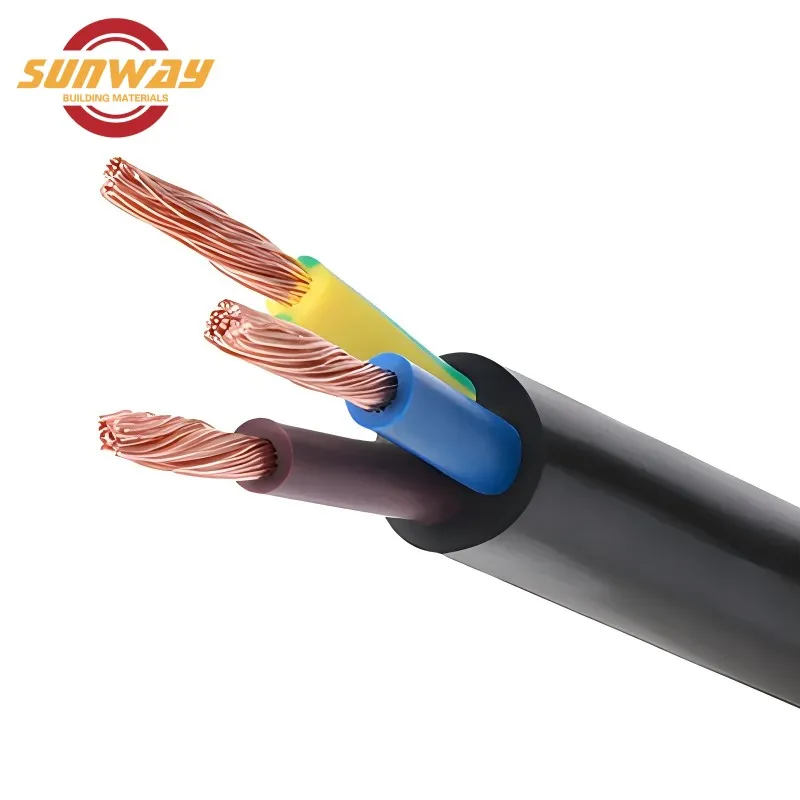

RVV (Copper/PVC Insulated PVC Sheathed Flexible Cable) is a multi-core sheathed flexible wire featuring double-layer insulation (inner PVC insulation + outer PVC sheath). It combines flexibility with mechanical protection, making it ideal for dynamic wiring applications requiring frequent movement or external protection.
Product Specifications and Parameters
| Parameter | Specification |
| Conductor | Oxygen-free copper (multi-strand) |
| Cores | 2-core, 3-core, 4-core, 5-core |
| Cross-section | 0.5mm²~6mm² (Common: 0.75/1.0/1.5mm²) |
| Voltage | 300/500V (Low voltage) |
| Insulation | PVC (Polyvinyl Chloride) |
| Temp. Range | -15℃~70℃ (Standard) |
| Colors | Black/Gray/White (Customizable) |
Applications
Home Appliances: Power cords for AC units, washing machines, rice cookers (e.g. RVV 3×1.5mm²)
Low-voltage Systems: Security cameras, audio systems, PoE devices (e.g. RVV 2×0.75mm²)
Industrial: Portable tools, control cabinet wiring, instrument connections
Temporary Power: Stage lighting, exhibition equipment requiring frequent movement
Selection Guidelines
Current Rating: Select cross-section based on amperage (1.5mm² ≈ 10A)
Environment: Choose UV-resistant RVV for outdoor/damp locations
Safety: Use ZR-RVV (flame-retardant) in high-rises or public spaces
