Category: Electric Wire
Product model: SW-BV
Product Features:
1. Electrical conductivity
2. Superior Insulation & Voltage Resistance
3. Heat & Flame Resistance
4. High Mechanical Strength & Durability
5. Eco-Friendly & Corrosion-Resistant
Product Description:

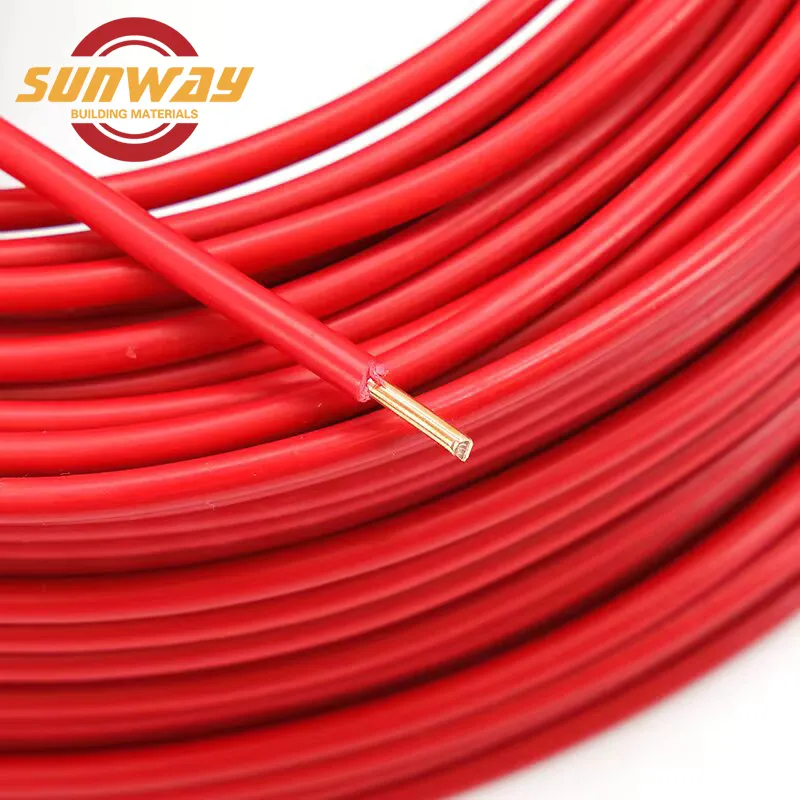

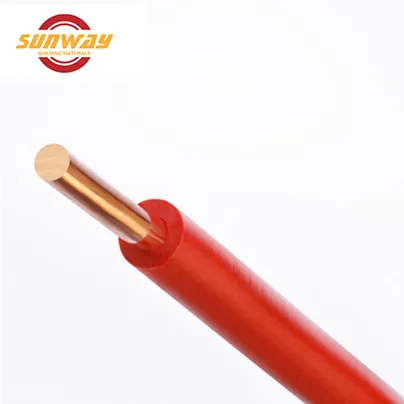

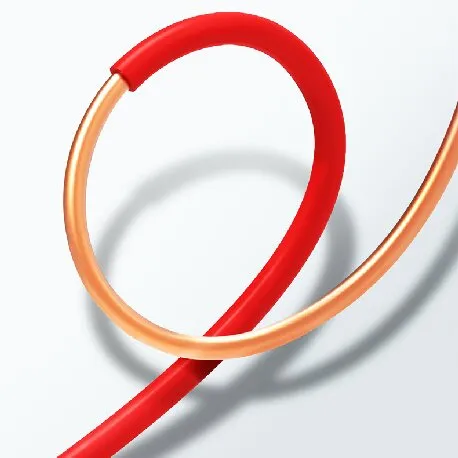

BV Wire is a commonly used fixed wiring conductor featuring high-purity oxygen-free copper core and PVC insulation, offering excellent conductivity and insulation performance. With a simple structure, high mechanical strength, and wear resistance, it is suitable for indoor electrical installations.
Product Specifications and Parameters
| Category | Specifications |
| 1. Conductor Size | 1.0mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm² |
| 2. Voltage Rating | 300/500V (Residential) / 450/750V (Industrial/High-load) |
| 3. Conductor Material | High-purity oxygen-free copper (TU1/TU2) |
| 4. Conductor Type | • Solid Core (BV): Rigid, for fixed installations • Stranded (BVR): Flexible, for bendable applications |
| 5. Insulation | • Material: PVC • Thickness Examples: - 1.0mm²: ~0.6mm - 2.5mm²: ~0.8mm - 10mm²: ~1.0mm |
| 6. Color Options | Red, Yellow, Green (Live), Blue (Neutral), Yellow-Green (Earth), etc. |
| 7. Packaging | Standard: 100m/roll or 200m/roll (Custom lengths available) |
| 8. Current Capacity (Ambient 30°C) | • 1.5mm²: 16-20A (Lighting) • 2.5mm²: 20-25A (Sockets/1.5P AC) • 4mm²: 25-32A (High-power devices) |
| 9. Certifications | • China: GB/T 5023.3-2008, CCC • International: IEC 60227 (Export models) |
Application
1. Residential Buildings
2. Commercial Spaces
3. Factory Power Distribution
4. Distribution Box Connections
